IMIN CRANE 1

A completely new approach to the concept of the word 'modular'. Thanks to its unique design, you have the possibility to assemble the device exactly to your liking.

The unique kiosk

An original solution that adapts perfectly to your needs. The kiosk can be equipped with different modules that allow you to completely change its appearance and purpose.

This device is compatible with the GP TOM payment app


 Absolute variability

Retail

Would you like to complement your shop with a designer multifunctional system that makes your sales staff's work easier? With a wide range of modules, it's easy. Usage example: 2x 16" touchscreens, payment terminal mount, magnetic reader, thermal printer, handheld scanner,

Desktop

Compact desktop with integrated printer, NFC reader and 2D scanner for faster customer check-in. Usage example: Small base with integrated thermal printer, NFC reader, magnetic reader, information beacon, 2D scanner

Standalone

Thanks to the high leg, it can stand freely in the space and ensure smooth customer check-in with a 2D scanner or NFC reader. Usage example: large base with integrated thermal printer, NFC reader, magnetic reader, information beacon, 2D scanner

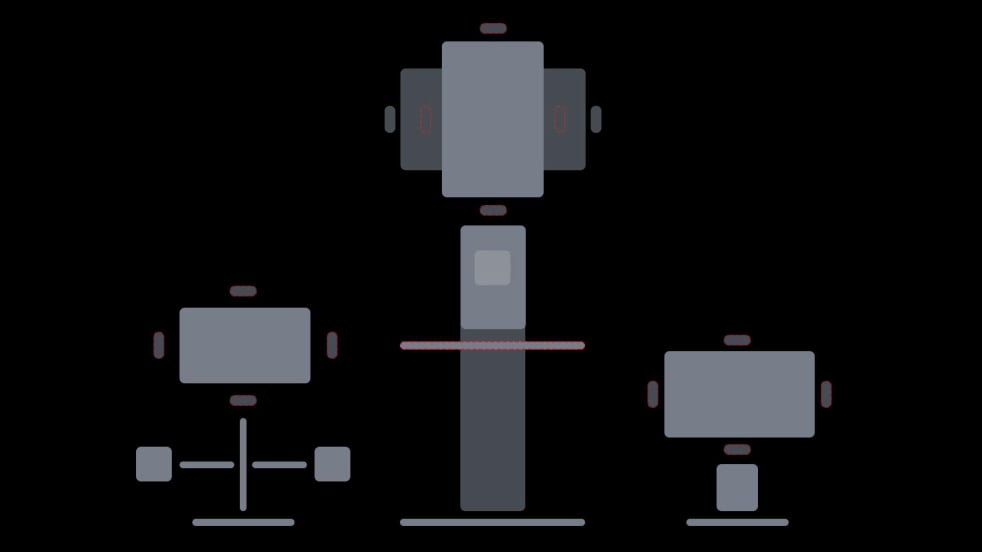

Modular design

Thanks to the hilarious design, you can build a completely original device for you original business.

2D Scanner, NFC, printer?

The iMin Crane offers a wide selection of peripherals that can be fitted to any device in any position. These peripherals include 2D scanner, thermal printer, NFC reader, information beacon.

Many options

Thanks to its modular design, the iMin Crane 1 is suitable for retail, service or cultural applications.

4 different FHD screens

FHD LCD touchscreens are available in the following sizes:
16", 21,5", 27", 32". Customer displays are available in 16" and 10.1" sizes.

Different stand variants

Several stand variants are available (floor, table, sales, cash register). Each variant can be equipped with any LCD and peripherals,

Wide range of ports

On the back, there is a wealth of ports that increase the expandability of the device, but don't spoil the overall aesthetic impression.

Main display

16" display

resolution 1920 x 1200
Android 13
up to 4 peripheral modules can be fitted

21,5" display

resolution 1920 x 1200
Android 13
up to 4 peripheral modules can be fitted

27" display

resolution 1920 x 1200
Android 13
up to 4 peripheral modules can be fitted

32" display

resolution 1920 x 1200
Android 13
up to 4 peripheral modules can be fitted

Customer display

10,1" display

resolution 1024 x 600

16" display

resolution 1920 x 1200

Peripheral modules

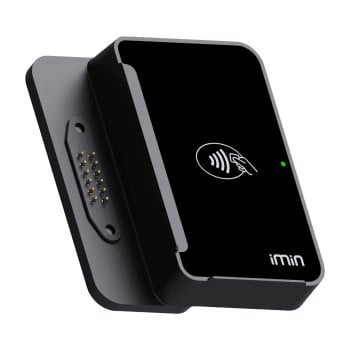

NFC reader

With this module you can accept payments via SoftPOS applications.

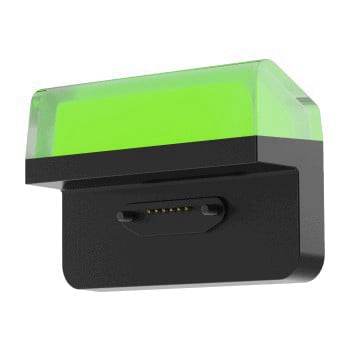

Status light

Displays the current status of the kiosk using a colour indication.

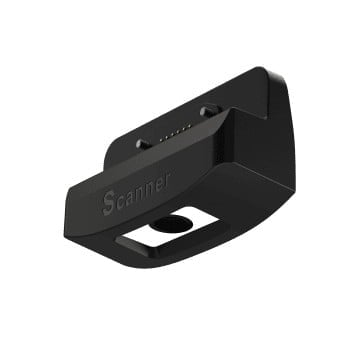

Barcode scanner

Supports reading 1D barcodes and 2D QR codes.

80 mm printer

Thermal printer for printing receipts.

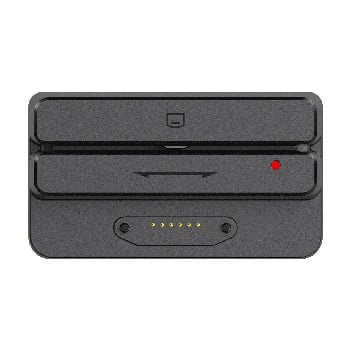

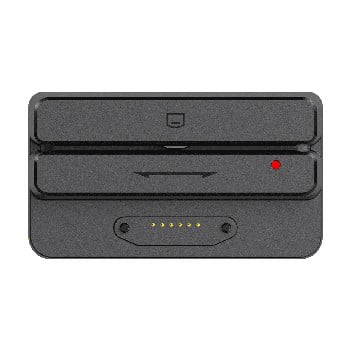

MSR module

Magnetic card reader. It is not possible to accept payments through this reader.

Stands

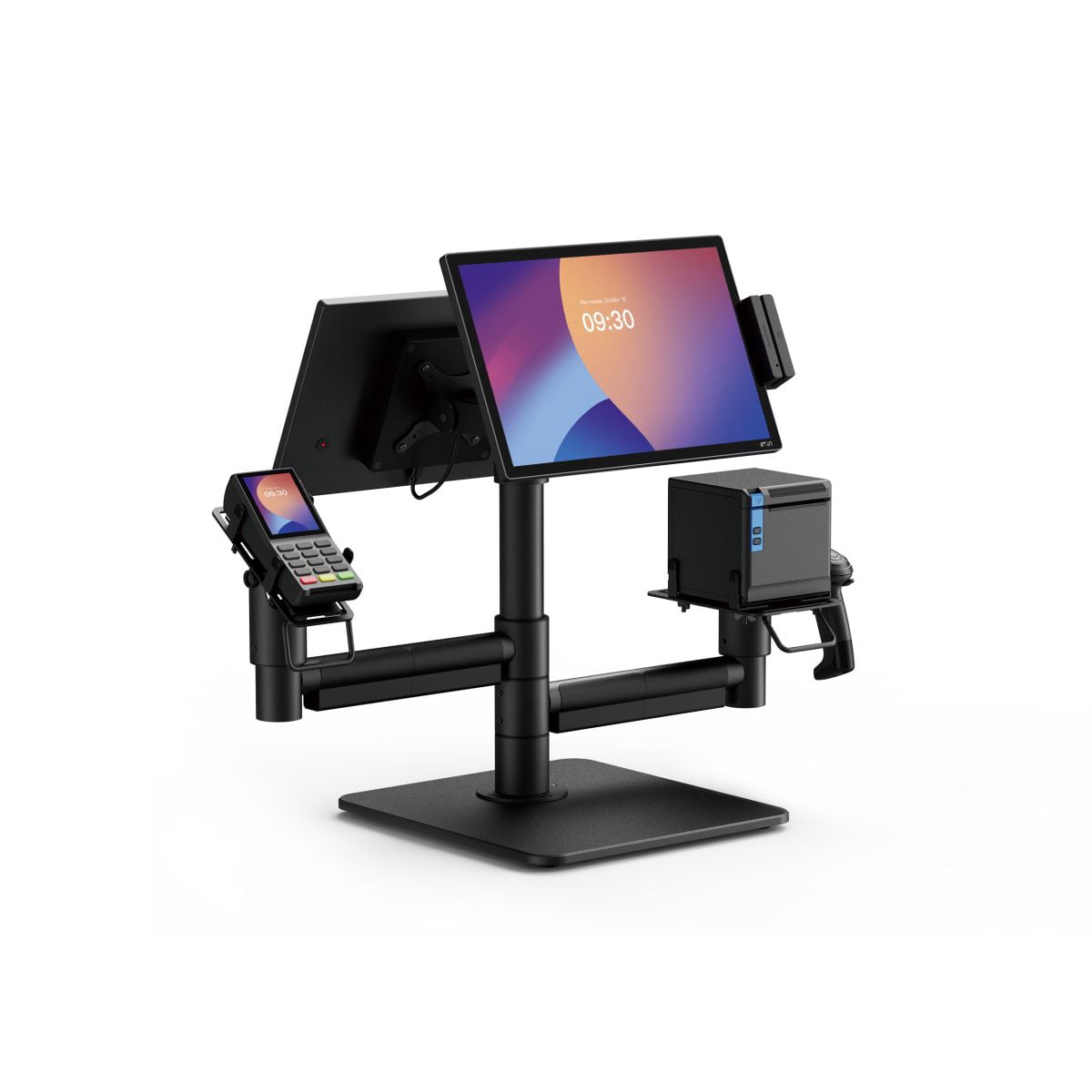

Retail stand

Arms with different modules can be attached to the stand.

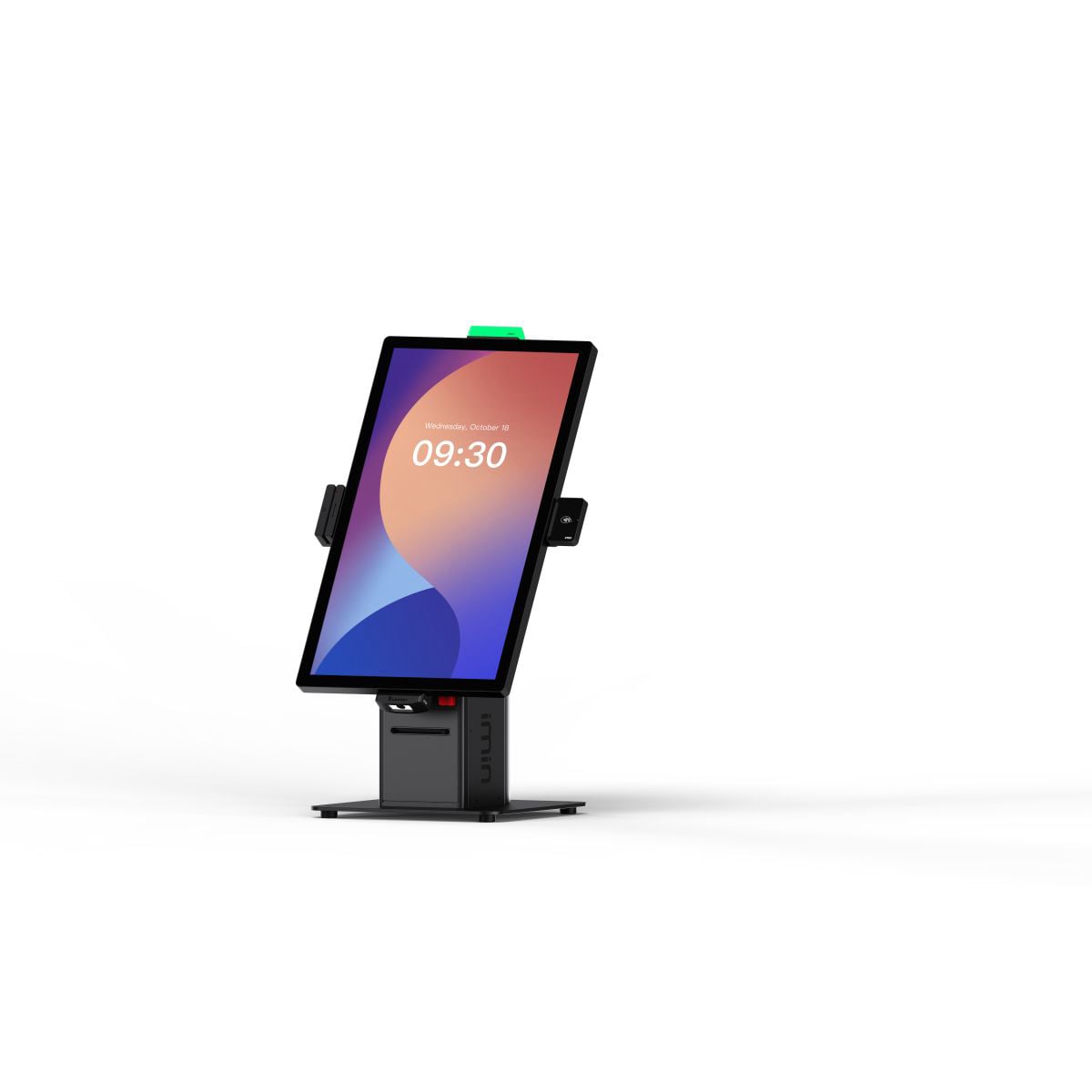

Table stand

The stand has an integrated 80mm printer.

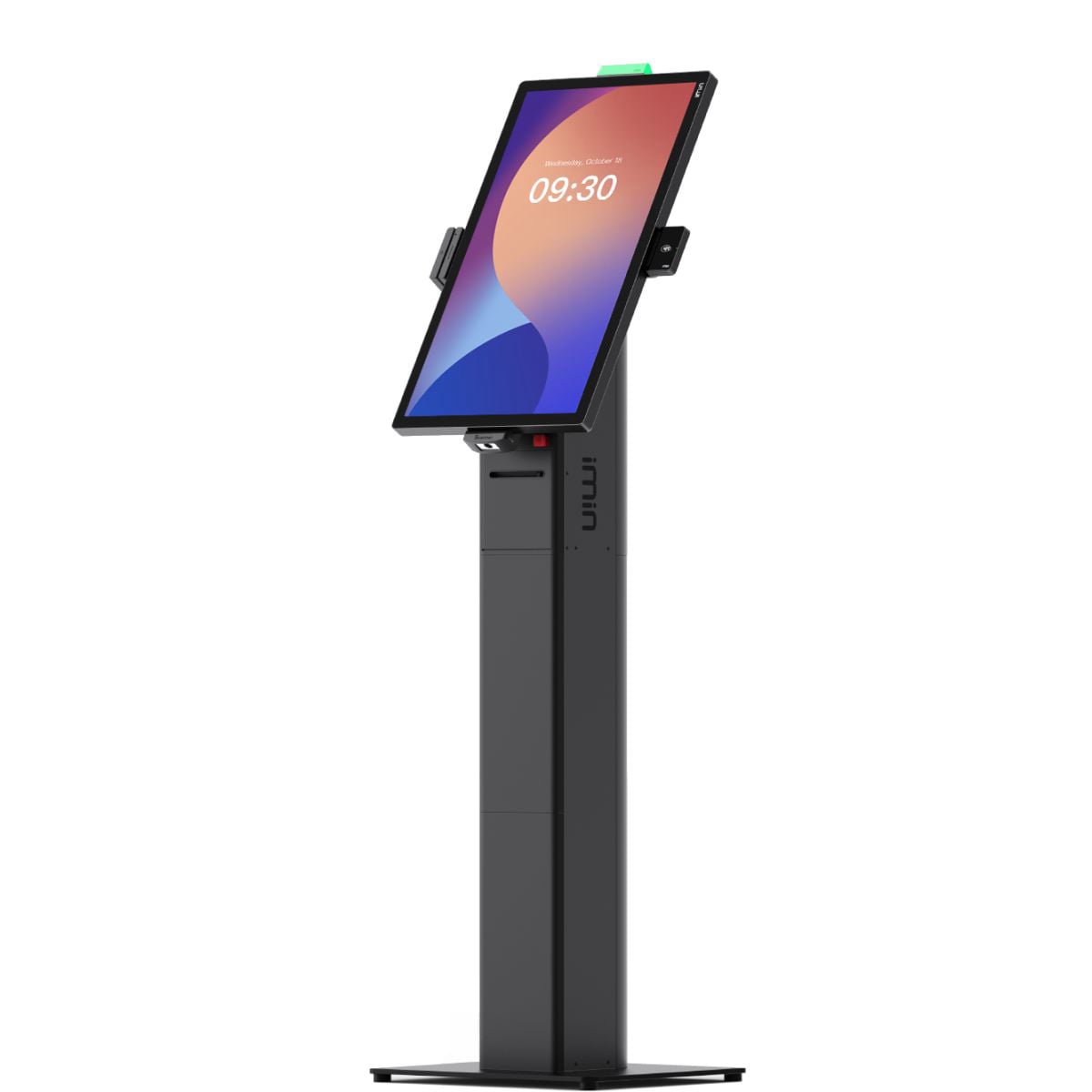

Floor stand

The stand has an integrated 80mm printer.

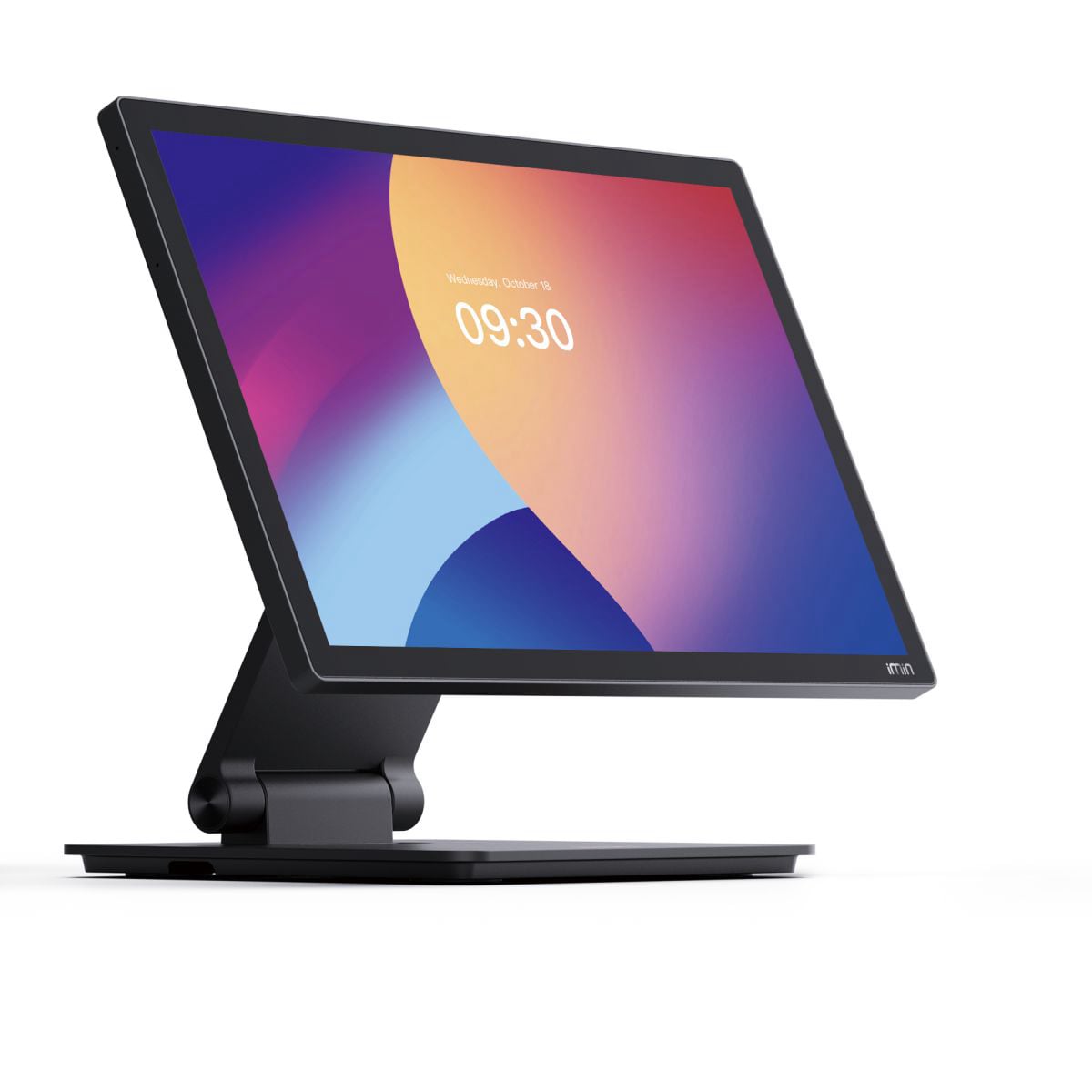

Cashier stand

The stand can be rotated as required.


Unique designby iMin

Parameters

IMIN CRANE1
CPUOcta-Core (Dual-Core Arm Cortex-78 2.2 GHz, Hexa-Core Arm Cortex-A55 2.0 Ghz)
Memory4 + 64 GB / 6 + 128 GB
Display
32" 1920 x 1200 px, FHD
27" 1920 x 1200 px, FHD
21,5" 1920 x 1200 px, FHD
16" 1920 x 1200 px, FHD
Customer displays
(optional)
16" 1920 x 1200 px, FHD
10,1" (NFC) 1024 x 600 px, IPS
NFCYes (optional)
Wi-Fi802.11 a/b/g/n/ac/ax
BluetoothBluetooth 5.3
Printer (optional)
80 mm
Ethernet1000 M
Camera-
Speaker3 W, mono
Ports6×USB-Type A 2.0
1× RJ11
1× RJ12
1× RJ45
1× 3.5mm audio
1× DC Jack
16" display: USB Pogo Pin 2×
21,5"/ 27" / 32" display: USB Pogo Pin 2×
Dimensions/weightMain displays:
32" Display: 746.5 x 441 x 56.5mm (9.3 Kg)
27" Display: 645.5 x 384 x 47.5mm (7.3 Kg)
21.5" Display: 525 x 316.7 x 46.5mm (4.8 Kg)
16" Display: 375 x 246 x 36.5mm (1.6 Kg)

Customer Displays:
16" Display: 375 x 246 x 36.5mm (1.4 Kg)
10.1" Display: 247.5 x 167.5 x 21.9mm (1.2 Kg)
OSAndroid 13
Optional accesoriesCustomer display 10.1", 1,280 × 800 px, IPS
Customer display 16", 1920 x 1200 px, FHD
NFC module
MSR reader (cannot accept payments)
2D scanner
Status light
